Ultimate Guide to the 300-410 - Latest Jan 07, 2022 Edition Available Now
2022 Updated Verified Pass 300-410 Exam - Real Questions and Answers
NEW QUESTION 165
Refer to the exhibit.
R1 is being monitored using SNMP and monitoring devices are getting only partial information. What action should be taken to resolve this issue?
- A. Modify the access list to include snmptrap.
- B. Modify the access list to add a second line to allow udp any any eq snmp
- C. Modify the CoPP policy to increase the configured CIR limit for SNMP.
- D. Modify the CoPP policy to increase the configured exceeded limit for SNMP.
Answer: B
NEW QUESTION 166
Refer to the exhibit.
The R1 and R2 configurations are:
The neighbor is not coming up. Which two sets of configurations bring the neighbors up? (Choose two.) A)
B)
C)
D)
E)
- A. Option E
- B. Option C
- C. Option D
- D. Option B
- E. Option A
Answer: B,E
Explanation:
NEW QUESTION 167
Refer to the exhibit.
What does the imp-null tag represent in the MPLS VPN cloud?
- A. Impose the label
- B. Pop the label
- C. Exclude the EXP bit
- D. Include the EXP bit
Answer: B
Explanation:
The -imp-null (implicit null) tag instructs the upstream router to pop the tag entry off the tag stack before forwarding the packet.
Note: pop means -remove the top MPLS label
NEW QUESTION 168
Drag and drop the SNMP attributes in Cisco IOS devices from the left onto the correct SNMPv2c or SNMPV3 categories on the right.
Answer:
Explanation:
NEW QUESTION 169
Refer to the exhibit.
An engineer is trying to generate a summary route in OSPF for network 10.0.0.0/8, but the summary route does not show up in the routing table. Why is the summary route missing?
- A. The summary route is visible only in the OSPF database, not in the routing table.
- B. The summary route is not visible on this router, but it is visible on other OSPF routers in the same area.
- C. The summary-address command is used only for summarizing prefixes between areas.
- D. There is no route for a subnet inside 10.0.0.0/8, so the summary route is not generated.
Answer: D
Explanation:
The -summary-address is only used to create aggregate addresses for OSPF at an autonomous system boundary. It means this command should only be used on the ASBR when you are trying to summarize externally redistributed routes from another protocol domain or you have a NSSA area. But a requirement to create a summarized route is:
-The ASBR compares the summary route's range of addresses with all routes redistributed into OSPF on that ASBR to find any subordinate subnets (subnets that sit inside the summary route range). If at least one subordinate subnet exists, the ASBR advertises the summary route.
NEW QUESTION 170
Refer to the exhibit.
PC-2 failed to establish a Telnet connection to the terminal server Which configuration resolves the issue?
- A. Option D
- B. Option C
- C. Option B
- D. Option A
Answer: D
NEW QUESTION 171
Refer to the exhibit.
An IP SLA was configured on router R1 that allows the default route to be modified in the event that Fa0/0 loses reachability with the router R3 Fa0/0 interface. The route has changed to flow through router R2. Which debug command is used to troubleshoot this issue?
- A. debug ip routing
- B. debug ip flow
- C. debug ip packet
- D. debug ip sla error
Answer: A
NEW QUESTION 172
Which attribute eliminates LFAs that belong to protected paths in situations where links in a network are connected through a common fiber?
- A. shared risk link group-disjoint
- B. interface-disjoint
- C. linecard-disjoint
- D. lowest-repair-path-metric
Answer: C
NEW QUESTION 173
What is a limitation of IPv6 RA Guard?
- A. It cannot be configured on a switch port interface in the ingress direction
- B. It is not supported in hardware when TCAM is programmed
- C. It does not offer protection in environments where IPv6 traffic is tunneled.
- D. Packets that are dropped by IPv6 RA Guard cannot be spanned
Answer: C
Explanation:
Restrictions for IPv6 RA Guard
* The IPv6 RA Guard feature does not offer protection in environments where IPv6 traffic is tunneled.
* This feature is supported only in hardware when the ternary content addressable memory (TCAM) is programmed.
* This feature can be configured on a switch port interface in the ingress direction.
* This feature supports host mode and router mode.
* This feature is supported only in the ingress direction; it is not supported in the egress direction.
* This feature is not supported on EtherChannel and EtherChannel port members.
* This feature is not supported on trunk ports with merge mode.
* This feature is supported on auxiliary VLANs and private VLANs (PVLANs). In the case of PVLANs, primary VLAN features are inherited and merged with port features.
* Packets dropped by the IPv6 RA Guard feature can be spanned.Reference:
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/ipv6_fhsec/configuration/xe-16-10/ip6f-xe-16-10-book/ip6-ra-guard.html#GUID-589AF00C-7499-439F-AD23-51005D61CAB7
NEW QUESTION 174
Refer to the exhibit. An IT staff member comes into the office during normal office hours and cannot access devices through SSH.
Which action should be taken to resolve this issue?
- A. Modify the access list to correct the subnet mask.
- B. Modify the access list to use the correct IP address.
- C. Configure the correct time range.
- D. Configure the access list in the outbound direction.
Answer: A
Explanation:
Section: Mixed Questions
NEW QUESTION 175
Refer to the exhibit. The network administrator has configured the Customer Edge router (AS 64511) to send only summarized routes toward ISP-1 (AS 100) and ISP-2 (AS 200).
router bgp 64511
network 172.16.20.0 mask 255.255.255.0
network 172.16.21.0 mask 255.255.255.0
network 172.16.22.0 mask 255.255.255.0
network 172.16.23.0 mask 255.255.255.0
aggregate-address 172.16.20.0 255.255.252.0
After this configuration. ISP-1 and ISP-2 continue to receive the specific routes and the summary route. Which configuration resolves the issue?
- A. router bgp 64511
neighbor 192.168.100.1 summary-only
neighbor 192.168.200.2 summary-only - B. interface E 0/0
ip bgp suppress-map BLOCK_SPECIFIC
!
interface E 0/1
ip bgp suppress-map BLOCK_SPECIFIC
!
ip prefix-list PL_BLOCK_SPECIFIC permit 172.16.20.0/22 ge 24
!
route-map BLOCK_SPECIFIC permit 10
match ip address prefix-list PL_BLOCK_SPECIFIC - C. ip prefix-list PL_BLOCK_SPECIFIC deny 172.16.20.0/22 ge 22
ip prefix-list PL BLOCK SPECIFIC permit 172.16.20.0/22
!
route-map BLOCK_SPECIFIC permit 10
match ip address prefix-list PL_BLOCK_SPECIFIC
!
router bgp 64511
aggregate-address 172.16.20.0 255 255.252.0 suppress-map BLOCKSPECIFIC - D. router bgp 64511
aggregate-address 172.16.20.0 255.255.252.0 summary-only
Answer: D
Explanation:
When the aggregate-address command is used within BGP routing, the aggregated address is advertised, along with the more specific routes.
The exception to this rule is through the use of the summary-only command. The "summary-only" keyword suppresses the more specific routes and announces only the summarized route.
NEW QUESTION 176
Refer to the exhibit. Which control plane policy limits BGP traffic that is destined to the CPU to 1 Mbps and ignores BGP traffic that is sent at higher rate?
- A. policy-map LIMIT_BGP
- B. policy-map SHAPE_BGP
- C. policy-map POLICE_BGP
- D. policy-map COPP
Answer: D
Explanation:
Section: Infrastructure Security
NEW QUESTION 177
What is a prerequisite for configuring BFD?
- A. Cisco Express Forwarding must be enabled on all participating BFD endpoints.
- B. To use BFD with BGP, the timers 3 9 command must first be configured in the BGP routing process.
- C. Jumbo frame support must be configured on the router that is using BFD.
- D. All routers in the path between two BFD endpoints must have BFD enabled.
Answer: A
Explanation:
Section: Layer 3 Technologies
Explanation/Reference: https://www.cisco.com/c/en/us/td/docs/ios/12_0s/feature/guide/fs_bfd.html#wp1043332
NEW QUESTION 178
Refer to the exhibit.

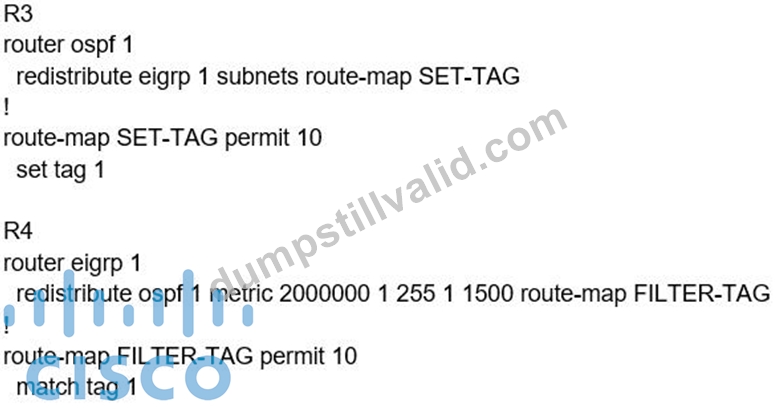

The output of the trace route from R5 shows a loop in the network. Which configuration prevents this loop?
A)
B)
C)
D)
- A. Option B
- B. Option D
- C. Option C
- D. Option A
Answer: A
NEW QUESTION 179
Drag and drop the operations from the left onto the locations where the operations are performed on the right.
Answer:
Explanation:
Explanation
Label Switch Router 1. Reads labels and forwards the packet based on the based on the label.
2. Performs PHP
Label Edge Router: 1 Assigns labels and unlabeled packets.
2. Handles traffic between multiple VPNs
NEW QUESTION 180
An engineer configured a company's multiple area OSPF Head Office router and Site A Cisco routers with VRF lite. Each site router is connected to a PE router of an MPLS backbone:
Head Office & Site A
ip cef
ip vrf abc
rd 101:101
!
interface FastEthernet0/0
ip vrf forwarding abc
ip address 172.16.16.X 255.255.255.252
!
router ospf 1 vrf abc
log-adjacency-changes
network 172.16.16.0 0.0.0.255 area 1
After finishing both site router configurations, none of the LSA 3, 4, 5, and 7 are installed at Site A router.
Which configuration resolves this issue?
- A. configure capability vrf-lite on both PE routers connected to Head Office and Site A routers under router ospf 1 vrf abc
- B. configure capability vrf-lite on Head Office and its connected PE router under router ospf 1 abc
- C. configure capability vrf-lite on Site A and its connected PE router under router ospf 1 vrf abc
- D. configure capability vrf-lite on Head Office and Site A routers under router ospf 1 vrf abc
Answer: D
Explanation:
Section: Mixed Questions
Explanation/Reference:
NEW QUESTION 181
When provisioning a device in Cisco DNA Center, the engineer sees the error message "Cannot select the device. Not compatible with template".
What is the reason for the error?
- A. The software version of the template is different from the software version of the device.
- B. The template has an incorrect configuration.
- C. The changes to the template were not committed.
- D. The tag that was used to filter the templates does not match the device tag.
Answer: D
Explanation:
If you use tags to filter the templates, you must apply the same tags to the device to which you want to apply the templates. Otherwise, you get the following error during provisioning: -Cannot select the device. Not compatible with template.
NEW QUESTION 182
An engineer is troubleshooting on the console session of a router and turns on multiple debug commands. The console screen is filled with scrolling debug messages that none of the commands can be verified if entered correctly or display any output. Which action allows the engineer to see entered console commands while still continuing the analysis of the debug messages?
- A. Configure the term no mon command globally
- B. Configure the logging synchronous command
- C. Configure the no logging console debugging command globally
- D. Configure the logging synchronous level all command
Answer: B
Explanation:
Explanation
Let's see how the "logging synchronous" command affect the typing command:
Without this command, a message may pop up and you may not know what you typed if that message is too long. When trying to erase (backspace) your command, you realize you are erasing the message instead.
With this command enabled, when a message pops up you will be put to a new line with your typing command which is very
NEW QUESTION 183
Refer to the exhibits. To provide reachability to network 10.1.1.0/24 from R5, the network administrator redistributes EIGRP into OSPF on R3 but notices that R4 is now taking a suboptimal path through R5 to reach
10.1.1.0/24 network.
Which action fixes the issue while keeping the reachability from R5 to 10.1.1.0/24 network?
- A. Change the administrative distance of OSPF to 200 on R5.
- B. Redistribute OSPF into EIGRP on R4.
- C. Apply the outbound distribution list on R5 toward R4 in OSPF.
- D. Change the administrative distance of the external EIGRP to 90.
Answer: D
Explanation:
Section: Mixed Questions
NEW QUESTION 184
Drag and drop the MPLS VPN concepts from the left onto the correct descriptions on the right.
Answer:
Explanation:
NEW QUESTION 185
Drag and drop the operations from the left onto the locations where the operations are performed on the right.
Answer:
Explanation:
Explanation
Label Switch Router 1. Reads labels and forwards the packet based on the based on the label.
2. Performs PHP
Label Edge Router: 1 Assigns labels and unlabeled packets.
2. Handles traffic between multiple VPNs
NEW QUESTION 186
Refer to Exhibit.
Which statement about redistribution from BGP into OSPF process 10 is true?
- A. Network 172.16.1.0/24 is not redistributed into OSPF.
- B. Network 10.10 10.0/24 is not redistributed into OSPF
- C. Network 172.16.1.0/24 is redistributed with administrative distance of 1.
- D. Network 10.10.10.0/24 is redistributed with administrative distance of 20.
Answer: A
NEW QUESTION 187
After some changes in the routing policy, it is noticed that the router in AS 45123 is being used as a transit AS router for several service provides. Which configuration ensures that the branch router in AS 45123 advertises only the local networks to all SP neighbors?
A)
B)
C)
D)
- A. Option C
- B. Option B
- C. Option A
- D. Option D
Answer: D
Explanation:
Explanation
By default BGP advertises all prefixes to external BGP neighbors. This means that if you are multi-homed (connected to two or more ISPs) then you might become a transit AS. For example, ISP 2 in AS 200 can send traffic to your router in AS 100 to reach ISP 3 in AS 300 because you advertised prefixes in ISP 3 to ISP 2.
This is what will be seen in the BGP routing table of ISP1:
NEW QUESTION 188
......
