NEW QUESTION # 27
A site has been engineered with a 1:20 grade.
Which of the following sidewalk designs would be the most cost-effective way to get from the top to the bottom and still be in compliance with the accessibility standards?
- A. At the same grade as the slope with no handrail
- B. Cutting diagonally across the slope at 1:10 with a handrail
- C. Cutting diagonally across the slope at 1:12 with no handrail
- D. Switchback ramps at 1:12 with a handrail
Answer: C
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
A 1:20 slope means a 5% grade (1 vertical unit per 20 horizontal units), which is slightly steeper than the ideal maximum slope for accessible ramps.
* Option C: Cutting diagonally across the slope at 1:12 (~8.33%) slope without a handrail is the most cost-effective design that still complies with accessibility standards. According to the Americans with Disabilities Act (ADA) and ICC A117.1, the maximum slope for an accessible ramp is 1:12. Handrails are required on ramps with a rise greater than 6 inches (150 mm). If the rise is less than 6 inches, handrails are not required.
Because the diagonal cut reduces the slope to 1:12 and the total rise is likely less than 6 inches given the gentle 1:20 original slope, handrails are not mandatory, making this solution economical and code compliant.
* Option A: Switchback ramps at 1:12 with handrails are compliant but more expensive due to increased construction complexity and space requirements.
* Option B: A 1:10 slope (10%) exceeds the maximum allowed slope for accessible ramps and requires handrails, thus non-compliant.
* Option D: Following the existing 1:20 slope without modification does not provide the maximum accessibility slope and may be acceptable but might not comply with certain stricter local codes for ramps.
Therefore, Option C balances accessibility, cost, and compliance optimally.
References:
ARE 5.0 Project Planning & Design Content Outline: Environmental Conditions and Context - Site Accessibility and Grading ADA Standards for Accessible Design (2010) ICC A117.1 Accessibility Standards The Architect's Handbook of Professional Practice, 15th Edition, Chapter 7: Site Planning and Accessibility
NEW QUESTION # 28
Comprehensive recycling of materials from building demolition is primarily limited by which one of the following?
- A. Lack of market for some recycled materials such as concrete and steel
- B. Relatively high labor costs compared to cost of raw materials
- C. Difficulty associated with specifying recycling requirements
- D. Technical difficulties of recycling more than 20% of demolition material
Answer: B
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
Although recycling building materials is environmentally beneficial, the relatively high labor costs for sorting, processing, and handling recycled materials often limit comprehensive recycling efforts. Raw materials can be cheaper, discouraging extensive recycling unless incentives or regulations exist.
Technical difficulties (A) and market availability (D) have been improved over time.
Specifying recycling (C) is a design phase task but is not the primary practical limitation.
References:
ARE 5.0 PPD - Environmental Conditions and Context, Sustainable Design
The Architect's Handbook of Professional Practice, 15th Edition - Demolition and Recycling
NEW QUESTION # 29
During design development of a new motel, the owner receives a cost estimate which was higher than what they had budgeted for. The project descriptions are as follows:
* Number of units: Twenty
* Construction type: V-B
* Number of stories: Two
* Structural system: Light wood frame
* Mechanical system: Central air system
The client wants the architect to reduce the initial construction cost without sacrificing the potential return on investment.
- A. Change the scope to an eighteen-unit development.
- B. Change the central air system to individual through-the-wall units at each room.
- C. Change the structural system to a precast concrete system.
- D. Change the number of stories to three.
Answer: B
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
Switching from a centralized HVAC system to individual through-the-wall units (PTACs) significantly reduces initial construction and mechanical costs by eliminating the need for extensive ductwork and mechanical rooms.
Increasing stories (A) increases structural and construction costs.
Reducing units (C) reduces revenue potential.
Precast concrete system (D) is typically more expensive than light wood framing.
Thus, individual room units save cost without reducing revenue potential.
References:
ARE 5.0 PPD - Project Costs and Budgeting
The Architect's Handbook of Professional Practice, 15th Edition - Mechanical Systems and Cost Control
________________________________________
NEW QUESTION # 30
An elementary school requires a renovation, selective demolition, and a major addition in order to accommodate a growing student population. An architectural firm has prepared schematic design plans incorporating the school's increased programmatic needs, including an enlarged library, cafeteria, and gymnasium; a secure courtyard; and additional space for administrative offices and classrooms. The main entrance was relocated in order to improve the traffic and pedestrian flow at the beginning and end of the school day, and additional parking was provided to comply with current zoning requirements.
The existing single-story masonry building was built in 1950. Two small additions were built later: the north addition will be kept and repurposed, but the south addition will be demolished. The building contains asbestos and lead in roof soffits, floor tiles, pipe insulation, and window paint. All existing mechanical systems need to be replaced; new systems have not been selected.
Considerations for the renovation include:
*The relocated front entrance must be easily recognizable, highly visible, and secure.
*Interior and exterior materials need to be durable and maintainable in order to withstand frequent student abuse, but also economical due to strict budget limitations.
*Good indoor air quality and increased energy efficiency are priorities for the selection of mechanical equipment.
After completion, the entire school should look uniform, without a distinctive difference between the existing building and new addition.
Building information:
*Construction Type is II-B.
The following resources are available for your reference:
*Existing Plans, including site and floor plans
*Proposed Plans, including site and floor plans
*Cost Analysis
*Zoning Ordinance Excerpts, for off-street parking requirements
*IBC Excerpts, showing relevant code sections
*ADA Standards Excerpts, showing relevant sections from the ADA Standards for Accessible Design The project team decides to cover the roof area above the gymnasium and platform with 350 watt, stationary, photovoltaic (PV) panels. Each panel requires 20 square feet, accounting for access aisles and safety clearances. The PV system will be tied to the local power company's electrical grid, and will not have battery storage. The school is located in a region that gets an average of 4 usable hours of sunlight per day.
Which of the following PV system design considerations apply to this project? Check the three that apply.
Refer to the project involving an elementary school renovation and addition with photovoltaic (PV) panels on the gymnasium roof (350-watt panels, 20 sq ft each, ~4 usable sunlight hours/day). The PV system is grid-tied without battery storage.
Which of the following PV system design considerations apply? Check the three that apply.
- A. The PV system will produce approximately 95.5 kW during peak sun conditions.
- B. The PV system will be made up of approximately 273 panels.
- C. The PV system will reduce the need for artificial lighting in the gymnasium and platform areas.
- D. The PV system will provide emergency power for the school if the grid goes down.
- E. The gymnasium and platform structural system must be designed to support the load of the PV system.
- F. The PV panels should be mounted toward the student pick-up/drop-off.
Answer: A,B,E
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
B: Structural support must accommodate PV panel weight and wind loads.
C: Number of panels is calculated by dividing total roof area by panel area (total panel count # 273).
F: Peak power output = number of panels × wattage per panel (273 × 350 W # 95.5 kW).
A: Grid-tied systems without batteries do not provide power during outages.
D: PV panels generate electricity but do not directly reduce artificial lighting needs.
E: Panels are mounted for optimal solar exposure, not necessarily toward pick-up areas.
References:
ARE 5.0 PPD - Environmental Conditions and Context, Solar Energy
The Architect's Handbook of Professional Practice, 15th Edition - Renewable Energy
NEW QUESTION # 31
A client asks that a lighting system be designed using the initial lamp lumen output.
Which of the following effects would this request have on the standard light design?
- A. It will increase the number of lamps.
- B. It will decrease the glare.
- C. It will decrease the number of lamps.
- D. It will increase the glare.
Answer: A
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
Designing lighting systems based on initial lamp lumen output (the maximum light output when lamps are new) without accounting for lumen depreciation (light loss over time) typically leads to increased number of lamps or fixtures to compensate for future light loss, ensuring adequate illumination throughout the system's life.
This approach does not directly affect glare (B, D).
It does not decrease the number of lamps (A); it often increases them for safety margin.
References:
ARE 5.0 PPD - Environmental Conditions and Context, Lighting Design
The Architect's Handbook of Professional Practice, 15th Edition - Lighting
NEW QUESTION # 32

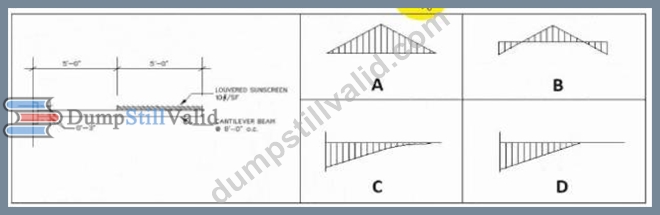

Refer to the exhibit (louvered sunscreen cantilevered with beam). Assume the cantilevered beam is weightless.
Which of the following is the moment diagram?
- A. B
- B. A
- C. C
- D. D
Answer: C
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
For a cantilevered beam loaded uniformly (such as a louvered sunscreen), the bending moment diagram is characterized by:
Maximum negative moment (hogging moment) at the fixed support (where the beam is anchored to the building). This is a large negative moment because the beam is fixed and resists rotation.
The moment decreases linearly to zero at the free end of the cantilever.
Diagram C shows this pattern with maximum moment at the support tapering to zero at the free end, consistent with static beam theory.
Other diagrams show positive moments or incorrect distributions.
This is a standard result taught in structural mechanics and referenced in ARE guidelines related to structural systems.
References:
ARE 5.0 PPD - Environmental Conditions and Context, Structural Systems
The Architect's Handbook of Professional Practice, 15th Edition - Structural Analysis
NEW QUESTION # 33
Which of the following is considered when using natural light as the primary source of ambient light to improve building quality and reduce energy costs?
- A. Clear glazing window wall system
- B. Operable windows located on opposite walls
- C. Single switched lighting controls
- D. Exterior shading devices
Answer: D
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
Using natural light as a primary source of ambient lighting is a sustainable strategy to improve indoor environmental quality and reduce energy consumption. However, careful control of daylighting is essential to avoid glare and overheating.
Exterior shading devices (such as louvers, overhangs, and fins) are critical in managing solar heat gain and glare by controlling direct sunlight before it enters the building envelope. They help maintain visual comfort and reduce cooling loads, directly impacting energy costs and occupant comfort.
Operable windows on opposite walls facilitate cross ventilation, which is beneficial for natural ventilation but does not directly control daylighting quality or energy use related to lighting.
Clear glazing window wall systems maximize daylight penetration but can increase solar heat gain if not properly shaded, thus increasing cooling loads.
Single switched lighting controls are a basic electrical feature and do not influence daylighting quality or energy efficiency related to natural light.
NCARB's PPD guidelines emphasize integrating exterior shading as a passive design strategy to optimize daylight use and reduce reliance on mechanical cooling and artificial lighting, improving building performance sustainably.
References:
ARE 5.0 Project Planning & Design - Environmental Conditions and Context The Architect's Handbook of Professional Practice, 15th Edition - Sustainable Design and Daylighting NCARB Guidelines on Daylighting and Energy Efficiency
NEW QUESTION # 34
For a government-owned project, architects can reduce consumption and waste by including which of the following requirements in their design and specifications? Check the four that apply.
- A. Limit bidding to local contractors
- B. Means of construction
- C. Reuse of existing structures
- D. Use of low flow fixtures
- E. Use of local materials
- F. Construction waste recycling
Answer: C,D,E,F
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
To reduce consumption and waste, especially for government projects emphasizing sustainability:
Construction waste recycling (A): Diverts materials from landfill.
Use of local materials (B): Reduces transportation energy and emissions.
Reuse of existing structures (D): Minimizes new material use and demolition waste.
Use of low flow fixtures (F): Conserves water and reduces operational consumption.
Means of construction (C) and limiting bidding (E) affect cost and process but less directly impact waste reduction.
References:
ARE 5.0 PPD - Environmental Conditions and Context, Sustainable Design
The Architect's Handbook of Professional Practice, 15th Edition - Green Building
________________________________________
NEW QUESTION # 35

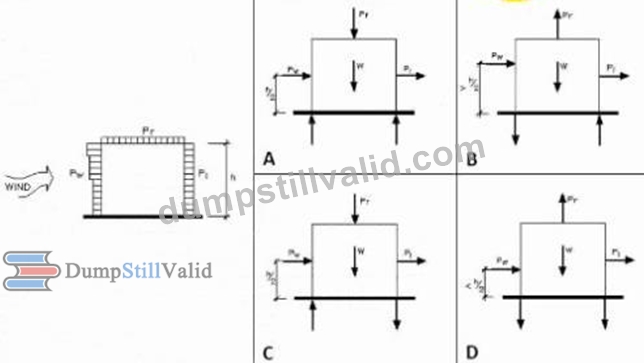

Refer to the exhibit (building subjected to wind with force diagrams A, B, C, D).
Which of the force diagrams shown correctly represents the resultant wind forces causing an overturning effect on the building and the forces that resist this overturning effect? (Direction and point of application of forces are to be considered; magnitude of forces is not.)
- A. A
- B. B
- C. C
- D. D
Answer: A
Explanation:
The diagram shows a building exposed to wind loading, which causes lateral pressure (P_w) on the windward wall and suction (negative pressure) on the leeward wall, generating an overturning moment about the base of the building.
* Diagram A correctly shows:
* The wind pressure (P_w) pushing on the windward wall, producing a lateral force applied at approximately two-thirds the building height (h), which tends to overturn the building.
* The wind suction (P_l) pulling on the leeward wall, acting in the opposite direction but also contributing to the overturning moment.
* The reaction forces at the base resist this overturning: an uplift force (negative vertical reaction) on the windward side and a downward force on the leeward side, counterbalancing the moment.
* Diagrams B, C, and D incorrectly orient or place the forces or reactions, failing to accurately depict the overturning moment and the corresponding resisting forces.
NCARB ARE 5.0 PPD guidelines on environmental conditions emphasize understanding wind load effects, including lateral pressures, suction, overturning moments, and foundation reactions essential for structural design and safety.
References:
ARE 5.0 Project Planning & Design Content Outline: Environmental Conditions and Context - Wind Loads and Structural Response ASCE 7-16: Minimum Design Loads for Buildings and Other Structures (Wind Load Provisions) The Architect's Handbook of Professional Practice, 15th Edition, Chapter 13: Building Codes, Standards, and Regulations
NEW QUESTION # 36
Which of the following types of heating system would be appropriate when the design requires a very compact system that has a low initial cost, is easily zoned, and has a quick response to temperature changes?
- A. Electric
- B. Combination forced air/hydronic
- C. Forced air
- D. Hydronic
Answer: A
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
Electric heating systems are compact, have low initial installation costs, and can be easily zoned with individual controls. They provide rapid response to temperature changes, making them suitable where space is limited and quick control is desired.
Hydronic systems have slower thermal response and require piping infrastructure.
Forced air systems need ductwork and are less compact.
Combination systems increase complexity and cost.
References:
ARE 5.0 PPD - Building Systems and Assemblies, Heating Systems
The Architect's Handbook of Professional Practice, 15th Edition - Mechanical Systems
NEW QUESTION # 37
Which of the following is the most effective way to reduce noise in mechanical air delivery systems?
- A. Provide exterior duct insulation
- B. Reduce the free area of the supply air grille
- C. Increase the size of the ductwork
Answer: C
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
Noise in mechanical air delivery systems is often caused by high air velocity and turbulence within ducts, which generate sound that can be transmitted to occupied spaces.
Increasing the size of the ductwork (A) lowers the air velocity for a given volume of air flow, which reduces turbulence and noise generation inside the duct. Larger ducts allow air to move more quietly and efficiently.
Exterior duct insulation (B) can reduce noise transmission through the duct walls but is less effective at controlling the noise generated by airflow itself inside the duct.
Reducing the free area of the supply air grille (C) increases velocity at the grille, potentially increasing noise at the outlet and causing discomfort.
Therefore, the most effective strategy is increasing duct size to reduce air velocity and noise.
References:
ARE 5.0 PPD - Building Systems and Assemblies, HVAC and Acoustics
NEW QUESTION # 38
An existing building containing the maximum allowable area may be extended horizontally provided the extension is separated from the existing building by which one of the following?
- A. A fire-rated shutter
- B. A fire wall
- C. An outside space separation of at least 10 ft
- D. A water curtain
Answer: B
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
According to the International Building Code (IBC) and reflected in the NCARB Project Planning & Design guidelines, when an existing building has reached the maximum allowable floor area, horizontal extensions (additions) can be made only if there is a proper separation between the existing structure and the new addition. This separation must prevent fire spread and protect structural integrity.
A fire wall is a continuous, fire-resistive barrier designed to prevent the spread of fire between adjacent buildings or different parts of a building. It must have structural stability under fire conditions and can allow the two portions of the building to be treated as separate structures for area calculations, effectively permitting expansion beyond the allowable area of a single building.
Fire-rated shutters (Option A) are movable devices used for compartmentation but are not intended for permanent separation of building areas.
Outside space separation of at least 10 ft (Option B) is generally insufficient for full area separation unless it meets specific fire-resistance rating and distance requirements that typically exceed 10 feet.
Water curtains (Option D) are active fire protection devices but are not substitutes for passive separations required by code to extend allowable building area.
Thus, the correct method to extend a building beyond its maximum allowable area is to separate it with a fire wall, as per NCARB and IBC provisions.
References:
ARE 5.0 PPD - Codes and Regulations, Building Area and Occupancy Separation IBC 2018, Chapter 7: Fire and Smoke Protection Features The Architect's Handbook of Professional Practice, 15th Edition - Fire Protection
NEW QUESTION # 39
An architect has just received client approval of the Schematic Design documents for a three-story, outpatient medical clinic. The clinic is located within a mixed-use development governed by a City-approved Planned Development (PD) document. The medical clinic design utilizes standardized departmental layouts and includes outpatient clinics, as well as treatment spaces, administrative spaces and public/lobby spaces.
The site needs to accommodate four different vehicular traffic flows: patient traffic, staff traffic, service and delivery traffic, and emergency services traffic. In addition, a pedestrian plaza must connect to the mixed-use development sidewalks. The plaza must provide space for bicycle parking and will serve as the future bus stop.
The site design addresses several challenges related to building orientation. The southeast facade, with excellent visibility from the highway, is the location of all service equipment. The building entrance faces northwest, convenient to the parking but not visible from the highway.
The client believes future patient volumes will outgrow the clinic. The PD document allows for a planned Phase 2 development on the adjacent vacant site to the southwest. Phase 2 would include a second building (2 story, 80,000 BGSF) and/or a parking deck.
Other considerations for the project include:
* Protected tree requirements are defined in the PD document.
* Easy pedestrian access must be provided from Sycamore Boulevard.
* All required parking for the clinic must be accommodated on site.
* Programmed area includes 109,450 Departmental Gross Square Feet (DGSF) / 130,184 Building Gross Square Feet (BGSF).
* Exterior material percentages are dictated by the PD document and shall not exceed specific percentages for Primary and Secondary Finishes.
* All service equipment needs to be screened; see PD document for restrictions.
* Signage opportunities are important to the client.
* Acoustical privacy is a concern of the healthcare system.
The following resources are available for your reference:
* Drawings, including a perspective, plans, and exterior elevations
* Building Program, including client's departmental program and detailed program for Treatment 01 (Infusion)
* Exterior Material Cost Comparisons
* Planned Development Document
* IBC Excerpts, showing relevant code sections
* ADA Excerpts, showing relevant sections from the ADA Standards for Accessible Design The developer decides that the 4-inch terra cotta exterior veneer is too expensive, and wants to replace the terra cotta with an alternative finish in its entirety.
Which of the following alternative materials should the architect suggest to reduce cost and meet the Planned Development Document requirements? Check the two that apply.
- A. Earth Tone EIFS
- B. Standard Brick
- C. Metal Panels (Fluoropolymer finish)
- D. Artisan Brick
- E. Cultured Stone
- F. Low Priced Stone
Answer: A,B
Explanation:
To reduce costs while complying with Planned Development (PD) document restrictions on exterior finishes, the architect should select materials that are less expensive than terra cotta yet meet aesthetic and code requirements:
Standard brick (C) is a cost-effective, durable alternative with broad acceptance.
Earth tone EIFS (E) (Exterior Insulation and Finish System) offers an economical and versatile finish that can replicate various textures and colors while reducing costs.
Low priced stone (A) and cultured stone (B) may still be costly or not permitted per PD document.
Artisan brick (D) and metal panels (F) may exceed allowed percentages or not fit aesthetic guidelines.
References:
Planned Development Document
ARE 5.0 PPD - Project Integration of Program and Systems
The Architect's Handbook of Professional Practice, 15th Edition - Exterior Finishes
NEW QUESTION # 40
An architect has just received client approval of the Schematic Design documents for a three-story, outpatient medical clinic. The clinic is located within a mixed-use development governed by a City-approved Planned Development (PD) document. The medical clinic design utilizes standardized departmental layouts and includes outpatient clinics, as well as treatment spaces, administrative spaces and public/lobby spaces.
The site needs to accommodate four different vehicular traffic flows: patient traffic, staff traffic, service and delivery traffic, and emergency services traffic. In addition, a pedestrian plaza must connect to the mixed-use development sidewalks. The plaza must provide space for bicycle parking and will serve as the future bus stop.
The site design addresses several challenges related to building orientation. The southeast facade, with excellent visibility from the highway, is the location of all service equipment. The building entrance faces northwest, convenient to the parking but not visible from the highway.
The client believes future patient volumes will outgrow the clinic. The PD document allows for a planned Phase 2 development on the adjacent vacant site to the southwest. Phase 2 would include a second building (2 story, 80,000 BGSF) and/or a parking deck.
Other considerations for the project include:
* Protected tree requirements are defined in the PD document.
* Easy pedestrian access must be provided from Sycamore Boulevard.
* All required parking for the clinic must be accommodated on site.
* Programmed area includes 109,450 Departmental Gross Square Feet (DGSF) / 130,184 Building Gross Square Feet (BGSF).
* Exterior material percentages are dictated by the PD document and shall not exceed specific percentages for Primary and Secondary Finishes.
* All service equipment needs to be screened; see PD document for restrictions.
* Signage opportunities are important to the client.
* Acoustical privacy is a concern of the healthcare system.
The following resources are available for your reference:
* Drawings, including a perspective, plans, and exterior elevations
* Building Program, including client's departmental program and detailed program for Treatment 01 (Infusion)
* Exterior Material Cost Comparisons
* Planned Development Document
* IBC Excerpts, showing relevant code sections
* ADA Excerpts, showing relevant sections from the ADA Standards for Accessible Design
Which of the following design solutions best addresses the client's concerns related to building orientation, vehicular circulation, and future expansion?
- A. Cluster patient and emergency vehicle access on the northwest facade with the main entrance adjacent, position staff and service access on the northeast, and minimize the pedestrian plaza to maximize parking area.
- B. Separate vehicular traffic by type with dedicated access points, place the main entrance facing northwest toward parking for convenient access, and locate service equipment on the southeast facade screened as per PD requirements.
- C. Position the main entrance on the northeast facade to align with future Phase 2 development, route all vehicular traffic through a centralized loop road, and locate service equipment behind the building without screening to reduce costs.
- D. Locate all vehicular traffic access on one side of the site to simplify circulation and position the main entrance on the southeast facade facing the highway for maximum visibility.
Answer: B
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
The design must balance client priorities, regulatory requirements, and site conditions:
* Vehicular Circulation:Separating traffic flows by function reduces conflicts and improves safety- patients, staff, deliveries, and emergency vehicles each require distinct circulation paths.
* Building Orientation:The main entrance facing northwest towards parking prioritizes user convenience, even if this orientation has less highway visibility. The southeast facade, visible from the highway, is dedicated to service equipment screened per PD document restrictions.
* Pedestrian Plaza:Providing a pedestrian plaza connected to mixed-use development sidewalks, with bicycle parking and bus stop, aligns with site accessibility and transit integration goals.
* Future Expansion:Positioning the site elements to accommodate Phase 2 on the adjacent southwest vacant site facilitates growth without major disruption.
* Screening and Material Use:Service equipment screening and adherence to PD exterior material percentages maintain design compliance.
* Acoustical Privacy:The layout supports departmental adjacency and separation for privacy, crucial in healthcare design.
* Option B best addresses these concerns and reflects the project's functional, regulatory, and contextual needs as outlined in NCARB ARE 5.0 Project Integration and Site Planning content.
References:
ARE 5.0 Project Planning & Design Content Outline: Project Integration of Program and Systems - Site Planning and Circulation City-approved Planned Development Document ADA Standards for Accessible Design The Architect's Handbook of Professional Practice, 15th Edition, Chapters 6 and 7 on Site Design and Program Integration
NEW QUESTION # 41
In the design of a project, the architect should do which of the following in order to respond to the requirements imposed by governmental authorities that have jurisdiction over the project?
- A. Include a provision in the construction contract that delegates code compliance to the contractor.
- B. Include a provision in the architect's contract with the owner that ensures compliance with all applicable codes.
- C. Implement a staff training program that will guarantee compliance with all applicable codes.
- D. Implement a code search checklist to capture key design code information.
Answer: D
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
Architects must proactively manage code compliance by thoroughly researching and documenting applicable codes early in design using tools like a code search checklist. This ensures key regulatory requirements are identified and integrated into design decisions.
Staff training (B) is good practice but does not guarantee compliance.
Delegating code compliance in contracts (C, D) does not relieve the architect's design responsibility.
References:
ARE 5.0 PPD - Codes and Regulations
The Architect's Handbook of Professional Practice, 15th Edition - Code Compliance
NEW QUESTION # 42

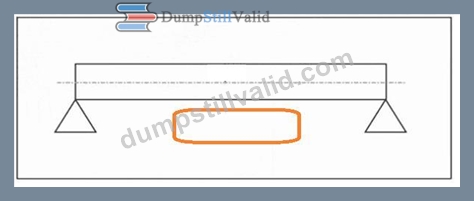

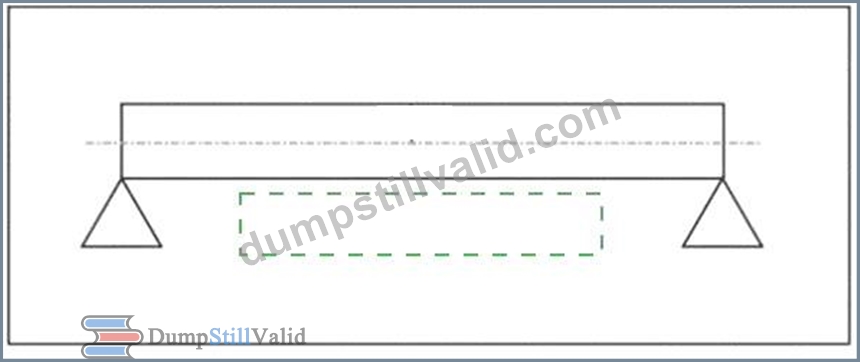

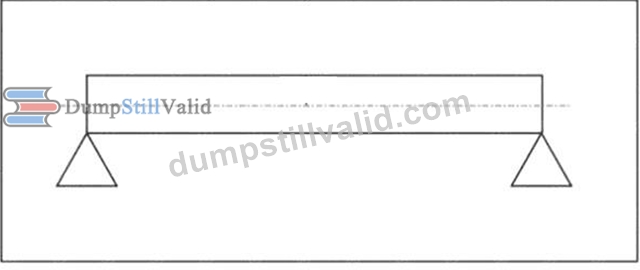

Click on the area of the concrete beam elevation where steel reinforcing will most improve the beam's span capability.
Answer:
Explanation:
NEW QUESTION # 43
The use of a central computer system to monitor a building's heating and cooling demands will do which one of the following?
- A. Be primarily for solar-heating and natural-cooling systems
- B. Increase the cost of energy consumption
- C. Interactively select the least energy-intensive system or combination of systems
- D. Eliminate the use of a facility manager
Answer: C
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
Central building automation systems (BAS) monitor and control HVAC and other systems to optimize energy efficiency by selecting the best combination of available systems and adjusting operation based on demand and conditions. This reduces energy consumption and operational costs.
BAS does not eliminate the need for facility managers (A), who oversee broader operations.
It aims to reduce, not increase, energy costs (C).
BAS is applicable to all mechanical systems, not limited to solar or natural cooling (D).
References:
ARE 5.0 PPD - Building Systems and Assemblies, Building Automation
The Architect's Handbook of Professional Practice, 15th Edition - Mechanical Systems
NEW QUESTION # 44
An elementary school requires a renovation, selective demolition, and a major addition in order to accommodate a growing student population. An architectural firm has prepared schematic design plans incorporating the school's increased programmatic needs, including an enlarged library, cafeteria, and gymnasium; a secure courtyard; and additional space for administrative offices and classrooms. The main entrance was relocated in order to improve the traffic and pedestrian flow at the beginning and end of the school day, and additional parking was provided to comply with current zoning requirements.
The existing single-story masonry building was built in 1950. Two small additions were built later: the north addition will be kept and repurposed, but the south addition will be demolished. The building contains asbestos and lead in roof soffits, floor tiles, pipe insulation, and window paint. All existing mechanical systems need to be replaced; new systems have not been selected.
Considerations for the renovation include:
*The relocated front entrance must be easily recognizable, highly visible, and secure.
*Interior and exterior materials need to be durable and maintainable in order to withstand frequent student abuse, but also economical due to strict budget limitations.
*Good indoor air quality and increased energy efficiency are priorities for the selection of mechanical equipment.
After completion, the entire school should look uniform, without a distinctive difference between the existing building and new addition.
Building information:
*Construction Type is II-B.
The following resources are available for your reference:
*Existing Plans, including site and floor plans
*Proposed Plans, including site and floor plans
*Cost Analysis
*Zoning Ordinance Excerpts, for off-street parking requirements
*IBC Excerpts, showing relevant code sections
*ADA Standards Excerpts, showing relevant sections from the ADA Standards for Accessible Design An elementary school library has an occupancy load of 150.
What is the minimum clear opening width required?
- A. 32"
- B. 36"
- C. 30"
Answer: B
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
According to ADA Standards and IBC egress requirements for an occupancy load of 150, the minimum clear opening width for doors must be at least 36 inches to accommodate the expected occupant flow and provide accessible egress.
30" or 32" openings are too narrow for this occupancy load.
Ensuring the minimum door width meets code is essential for safe and accessible design.
References:
ADA Standards for Accessible Design
IBC Chapter 10 - Means of Egress
ARE 5.0 PPD - Codes and Regulations
________________________________________
NEW QUESTION # 45
An elementary school requires a renovation, selective demolition, and a major addition in order to accommodate a growing student population. An architectural firm has prepared schematic design plans incorporating the school's increased programmatic needs, including an enlarged library, cafeteria, and gymnasium; a secure courtyard; and additional space for administrative offices and classrooms. The main entrance was relocated in order to improve the traffic and pedestrian flow at the beginning and end of the school day, and additional parking was provided to comply with current zoning requirements.
The existing single-story masonry building was built in 1950. Two small additions were built later: the north addition will be kept and repurposed, but the south addition will be demolished. The building contains asbestos and lead in roof soffits, floor tiles, pipe insulation, and window paint. All existing mechanical systems need to be replaced; new systems have not been selected.
Considerations for the renovation include:
* The relocated front entrance must be easily recognizable, highly visible, and secure.
* Interior and exterior materials need to be durable and maintainable in order to withstand frequent student abuse, but also economical due to strict budget limitations.
* Good indoor air quality and increased energy efficiency are priorities for the selection of mechanical equipment.
After completion, the entire school should look uniform, without a distinctive difference between the existing building and new addition.
Building information:
* Construction Type is II-B.
The following resources are available for your reference:
* Existing Plans, including site and floor plans
* Proposed Plans, including site and floor plans
* Cost Analysis
* Zoning Ordinance Excerpts, for off-street parking requirements
* IBC Excerpts, showing relevant code sections
* ADA Standards Excerpts, showing relevant sections from the ADA Standards for Accessible Design
- A. 1st Grade Classrooms
- B. 5th Grade Classrooms
- C. 3rd Grade Classrooms
- D. Kindergarten Classrooms
Answer: D
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
According to IBC and egress requirements, kindergarten classrooms often have more stringent egress requirements than higher grades due to the younger occupant population, who require faster and easier exit options in emergencies. This often translates into requirements for additional or wider exit doors to ensure safe, quick evacuation.
Older grades (1st, 3rd, 5th) typically have less restrictive egress door requirements.
Code mandates consider occupant age and ability to evacuate efficiently.
Thus, kindergarten classrooms should be flagged for additional doors if not already provided.
References:
IBC Chapter 10 - Means of Egress, Occupant Load and Egress Requirements ADA Standards for Accessible Design ARE 5.0 PPD - Codes and Regulations
NEW QUESTION # 46
......
Free Project-Planning-Design Test Questions Real Practice Test Questions: https://www.dumpstillvalid.com/Project-Planning-Design-prep4sure-review.html
View Project-Planning-Design Exam Question Dumps With Latest Demo: https://drive.google.com/open?id=1h00V52_de_91zE2f8Fa81b05j5IGzXr-
